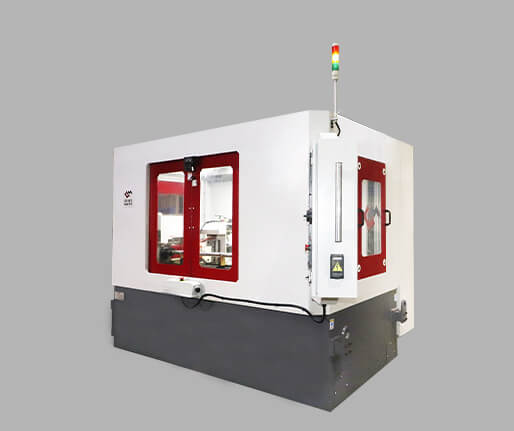

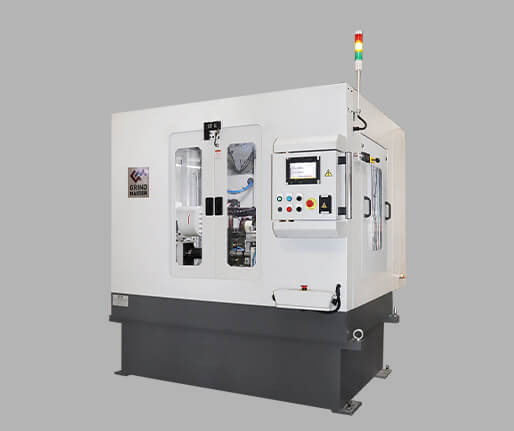

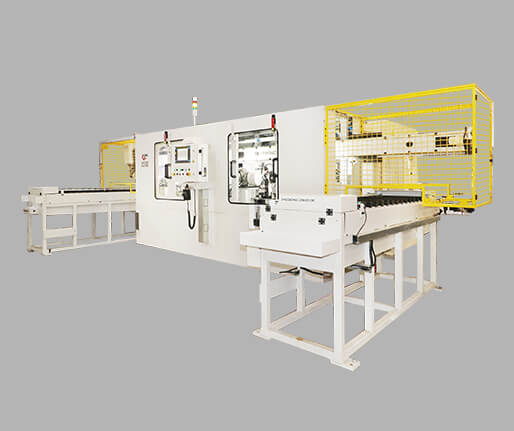

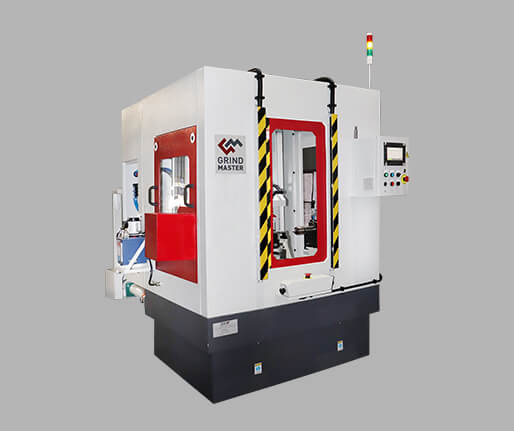

Superfinishing Machines – SMP / SMT / SMI Series

Superfinishing Machine uses the head consisting of Film Backed Abrasives stretched around contact wheel oscillated against the work piece which is held between centres. This process is useful to generate surface finish Upto Ra 0.05
Machine ModelDescription
SMP 500EAdmit Between Centre 500 mm
International Built Standard
Optional – GSF Size Control Technology
Expandable to Multiple Stations with Automation
SMP300/500/800 SeriesAdmit Between Centre 300/500/800 mm
Variants for Polishing Instead of Superfinishing
Expandable to Multiple Stations with Automation
SMP1000 SeriesAdmit Between Centre 1000 mm
SMP 1500 seriesAdmit Between Centre 1500 mm
Rotation and Traversing Control to generate Helix like features
SMP 3000 SeriesAdmit Between Centre 3000 mm
Heavy Duty Machine for Large Components
SMP Plunge SeriesPlunge Type Superfinishing (Centerless)
Manual Load / Automatic Load Options
CSTCentreless Throughfeed Superfinishing
SMT SeriesFlat Surface Superfinishing
SMI SeriesInternal Superfinishing

Features

  • Grind Master NANOSMART Industrie 4.0 Enabled Controller
  • Grind Master NANOFINISH Control System
  • Modular Design – Compact, Energy Saving & Ultra User Friendly
  • Optimised cycle times
  • Quick Setup Change
  • Quick Consumable Change

Options

  • These Machines are Customized to meet specific Customer Needs of Automation, Load/Unload, Size and many more..

Applications

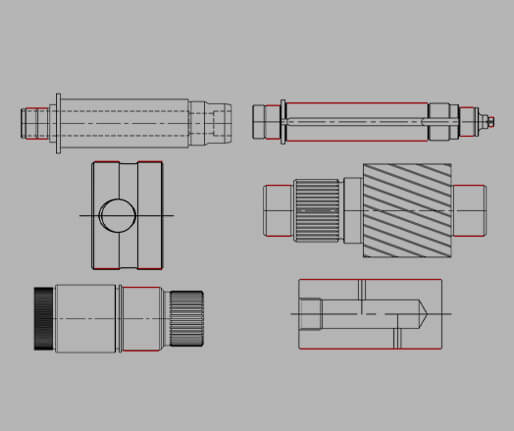

  • Superfinishing of Automotive Transmission Parts :
    Synchro Cone, Idle Gears, Armature Shaft, Stepped Shaft, Turbo Charger Shaft, Transmission Yoke and Output Shaft,
  • Superfinishing of Gear Pump Shafts
  • Superfinishing of Piston Pins, Cam follower, Piston Rods, Brake Pistons and Vacuum Pistons
  • Superfinishing & Chrome Polishing of Rotogravure Cylinders
  • Superfinishing/Polishing of Steering Rack Bars
  • Superfinishing of Heavy Diesel Engine Pins
  • Specialized Superfinishing Applications in Aerospace
  • Superfinishing of Flat surfaces of Gear Pump Shaft, Main Shaft, Balancer Shaft and Turbine Shaft
  • Internal Superfinishing
  • Centreless Throughfeed Superfinishing for Pin Type Components
